Interactive Blocks

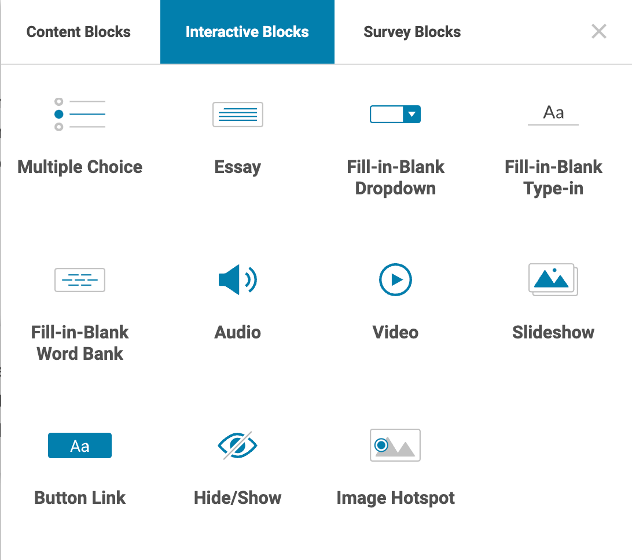

There are 11 Interactive Content Blocks. See detailed explanation below for each of these Interactive content block types.

Multiple Choice


A Multiple Choice interactive block can be used for questions with a single correct answer or multiple correct answers. Answers for both question type can be text or images.

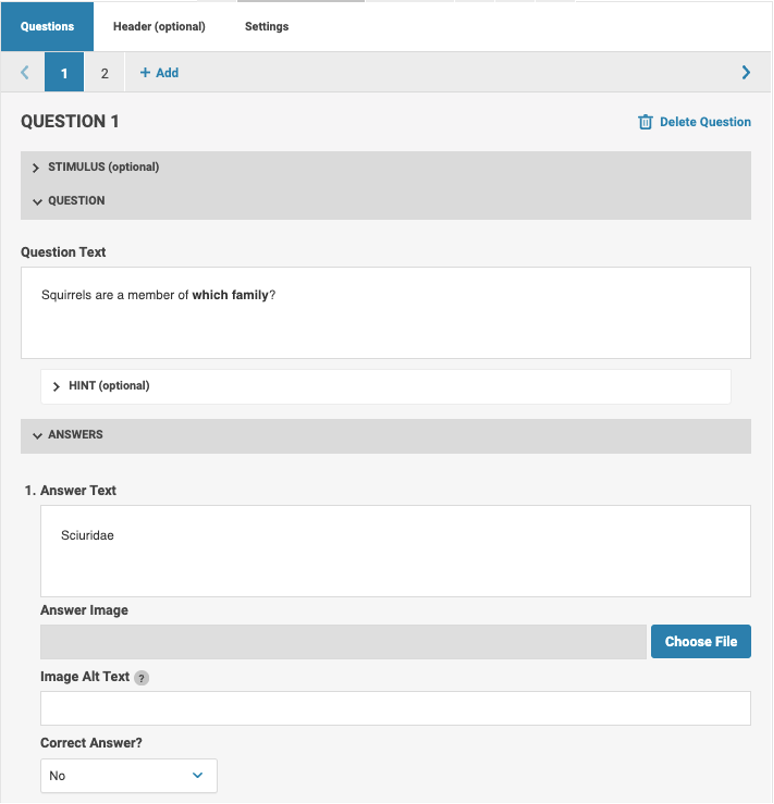

The Questions tab is where the question and answer content is entered. Answers can be text or images. A correct answer(s) must be designated for each question. A single answer or multiple answers can be tagged as the correct answer. A Question stimulus (image/audio/text and/or video) can be added in the Stimulus (optional) section.

Each Question and associated answers are entered on a separate screen via the number bar.

Feedback can be at a question level (feedback relevant to all answers of the questions) or at an answer level (feedback relevant to a specific answer).

To add question level feedback, open the ‘FEEDBACK (optional)’ section at the bottom of the Questions tab. Feedback can be an image, audio, text or video.

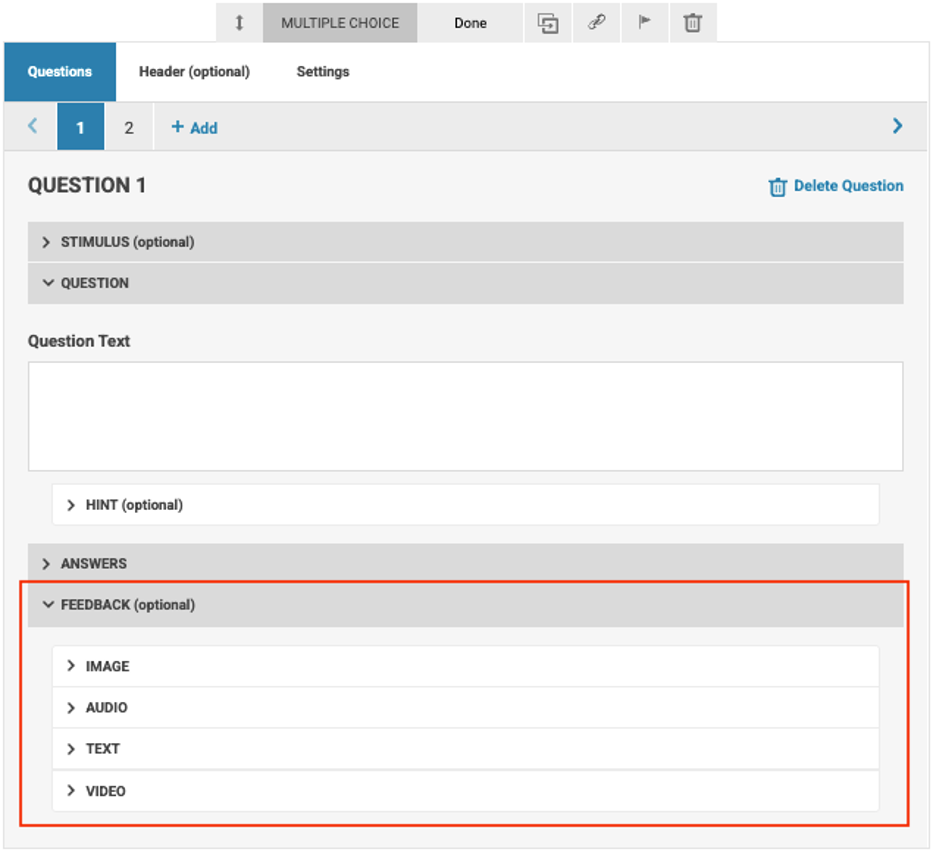

MC Feedback.png

To add answer level feedback, open the ‘ANSWER FEEDBACK (optional)’ section for each answer within the ANSWERS tab of the question. Feedback can be an image, audio, text or video.

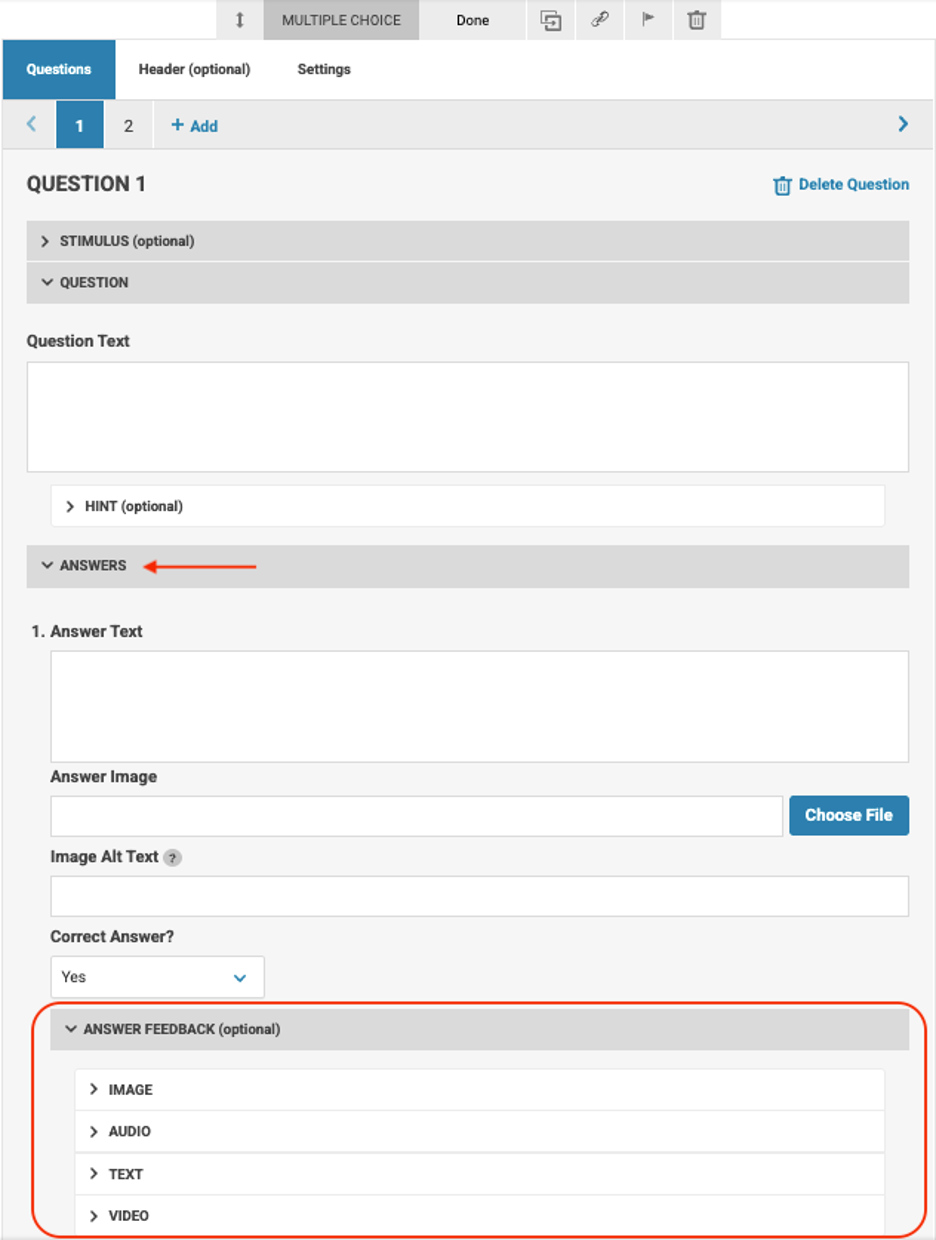

MC Answers feedback.png



Fill-in-Blank Type-in


The Fill-in-Blank Type-in block type is typically used for one-word answers that are missing from a paragraph or statement, or in response to a question. Each question can include one or more blanks. For each blank, a user must type-in the characters that match the correct answer as specified by the author.

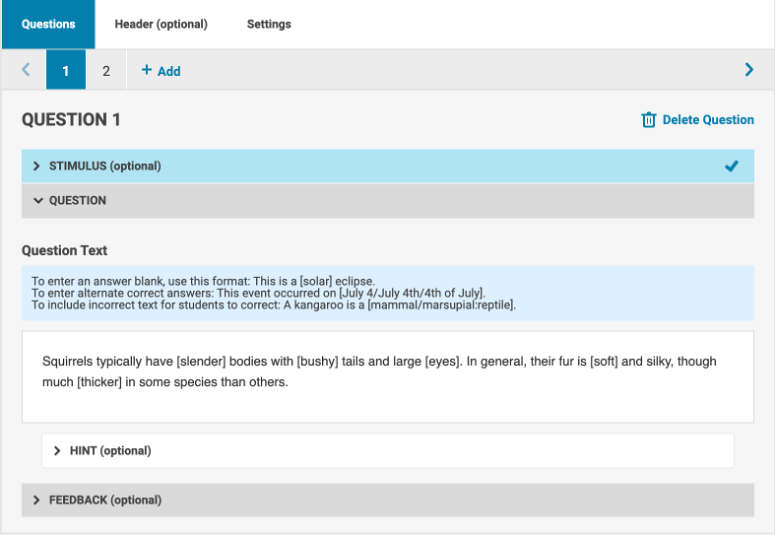

  • To enter an answer blank use this format: This is a [solar] eclipse.
  • To enter alternate correct answers use this format: This event occurred on [July 4/July 4th/4th of July].
  • To display incorrect text that the user has to correct (in this case ‘reptile), use this format: A kangaroo is a [mamma:reptile] or for alternate correct answers: A kangaroo is a [mammal/marsupial:reptile].

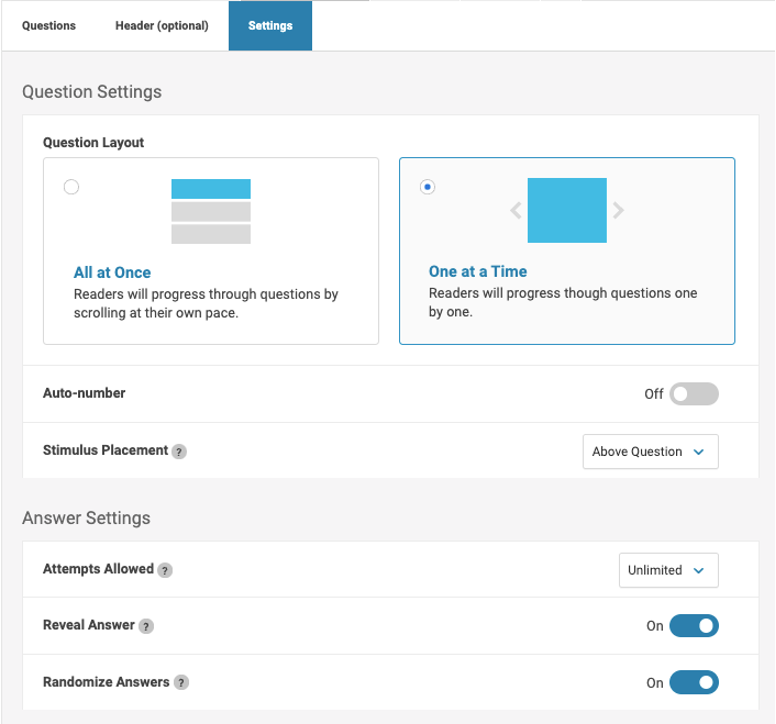

On the Settings tab, you can adjust stimulus, question and answer settings.

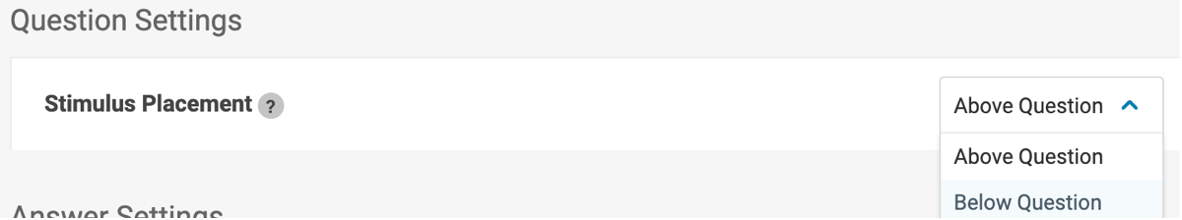

You can change the question setting to adjust the Stimulus Placement to select if the stimulus appears above or below the question text.

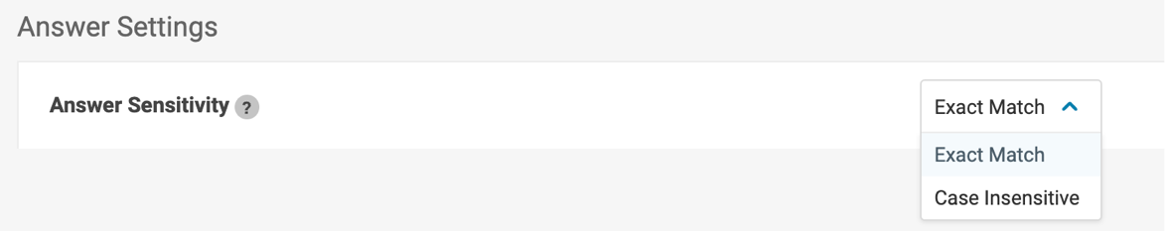

You can change the Answer Sensitivity from Exact Match, (the default setting), to Case Insensitive which enables acceptance of any combination of upper and lower-case letters that match the correct answer rather than requiring an exact match.


For text feedback, you can toggle to Individual Text Feedback in the Settings tab. In this mode, you can provide specific, targeted responses to learners based on exactly what they type-in.


The Question tab is where you enter stimulus, question, hint and feedback content.

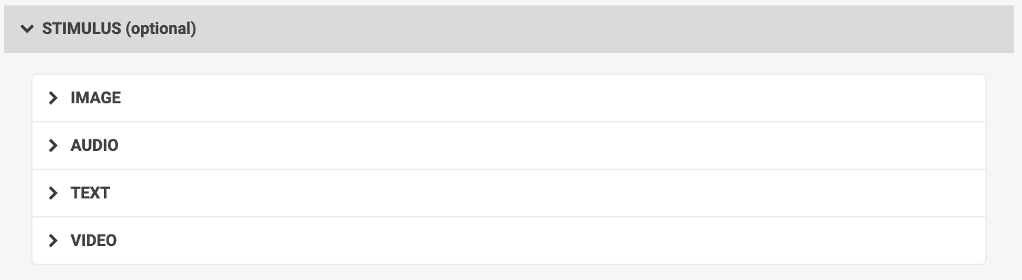

A stimulus (image/audio/text and/or video) can be added in the STIMULUS (optional) section for each question text.

Hint text can be added for each question in the HINT (optional) section.

Feedback (image/audio/text and/or video) can be added in the FEEDBACK (optional) section.

When in Individual Text Feedback mode, instruction will appear for the TEXT FEEDBACK field, to explain how to author the individual feedback for each answer. NOTE: These instructions will not appear if Individual Text Feedback is disabled in the Settings tab.

Individual text feedback will display upon Check Answer for each response the learner types in if Individual Text Feedback mode is enabled.



Fill-in-Blank Dropdown


The Fill-in-Blank Dropdown block type is similar to the Fill-in-Blank Type-in question except that students select their answer from a dropdown menu rather than typing it into an input field. You would use this question type when it’s more important for a user to recognize the correct answer in a field of possibilities rather than exercising full recall of the answer with accurate spelling as required for the Type-in version.

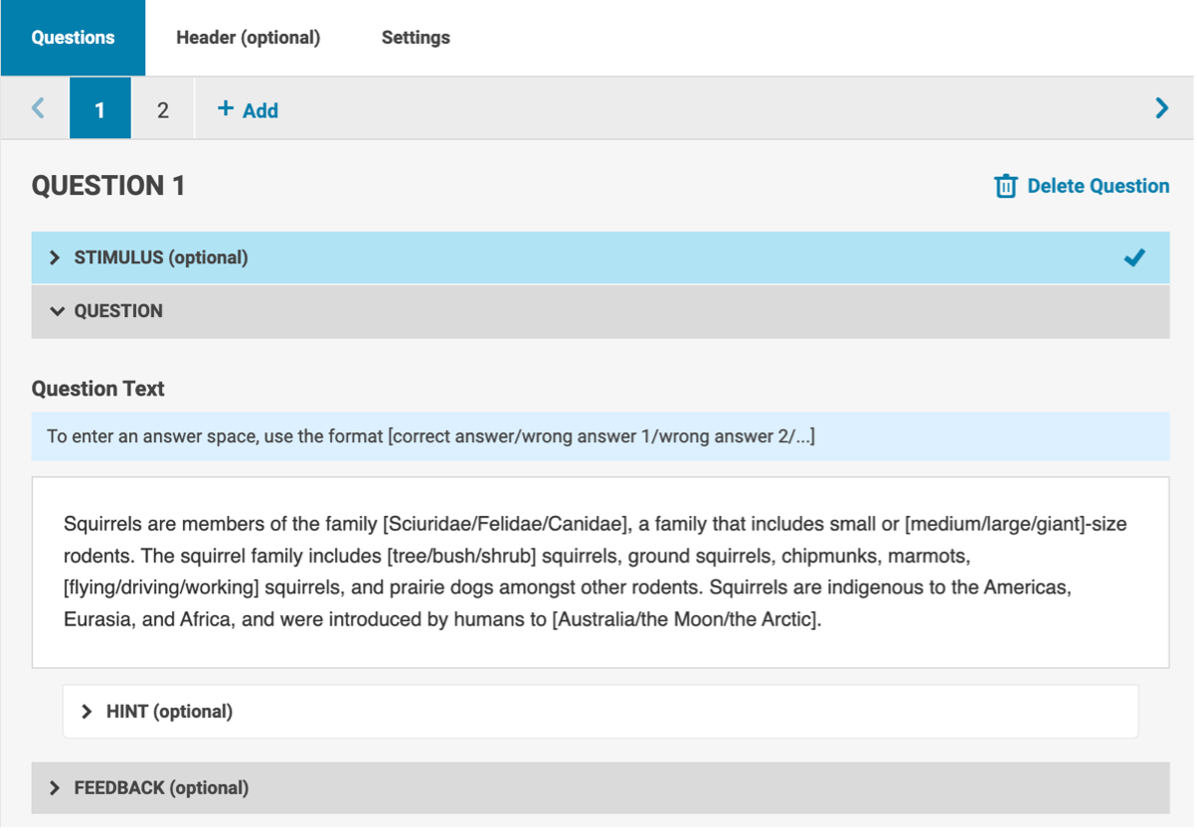

  • To enter an answer space use the format: [correct answer/wrong answer 1/wrong answer 2/…].

On the Settings tab, you can adjust stimulus, question and answer settings.

You can change the question setting to adjust the Stimulus Placement to select if the stimulus appears above or below the question text.





For text feedback, you can toggle to Individual Text Feedback in the Settings tab. In this mode, you can provide specific, targeted responses to learners based on exactly what they selected or chose.



On the Question tab you can enter stimulus, question, hint and feedback content.

A stimulus (image/audio/text and/or video) can be added in the STIMULUS (optional) section for each question text.

 A Hint text can be added for each question in the HINT (optional) section.

 Feedback (image/audio/text and/or video) can be added in the FEEDBACK (optional) section.

When in Individual Text Feedback mode, instruction will appear for the TEXT FEEDBACK field, to explain how to author the individual feedback for each answer. NOTE: These instructions will not appear if Individual Text Feedback is disabled in the Settings tab.



Individual text feedback will display upon Check Answer for each response the learner selected if Individual Text Feedback mode is enabled.




Fill-in-Blank Word Bank

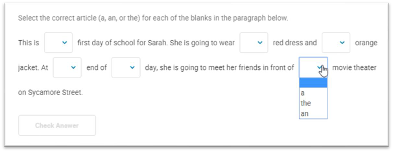

The Fill-in-Blank Word Bank block type is similar to the Fill-in-Blank Dropdown question except that the Word Bank question is intended for questions with multiple answer blanks where the dropdown menu for each answer blank displays the exact same answer options as shown in the example below.

Distractors can also be added to the dropdown menu.

The Fill-in-Blank Dropdown question is also used for questions with multiple answer blanks, but in that question type, the dropdown menu of answer options for each blank is a different set of choices. In the Fill-in-Blank Word Bank

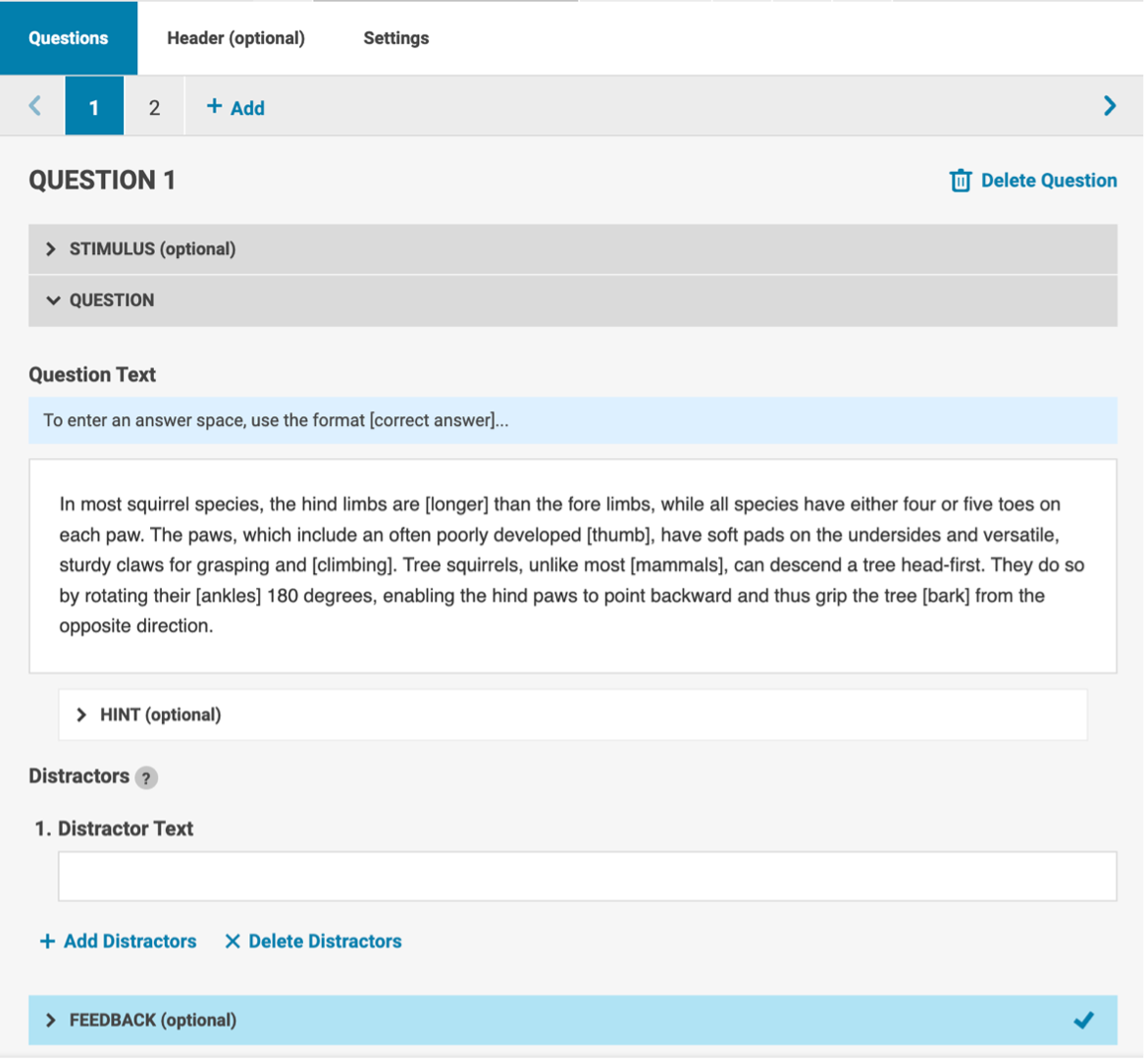

  • To enter an answer space, use the format: [correct answer].

    On the Settings tab, you can adjust stimulus, question and answer settings.



    You can change the question setting to adjust the Stimulus Placement to select if the stimulus appears above or below the question text.




    For text feedback, you can toggle to Individual Text Feedback in the Settings tab. In this mode, you can provide specific, targeted responses to learners based on exactly what they selected or chose.



    On the Question tab you can enter stimulus, question, hint and feedback content.

    A stimulus (image/audio/text and/or video) can be added in the STIMULUS (optional) section for each question text.

    A Hint text can be added for each question in the HINT (optional) section.

    Feedback (image/audio/text and/or video) can be added in the FEEDBACK (optional) section.

    When in Individual Text Feedback mode, instruction will appear for the TEXT FEEDBACK field, to explain how to author the individual feedback for each answer. NOTE: These instructions will not appear if Individual Text Feedback is disabled in the Settings tab.



    Individual text feedback will display upon Check Answer for each response the learner selected if Individual Text Feedback mode is enabled.


Essay

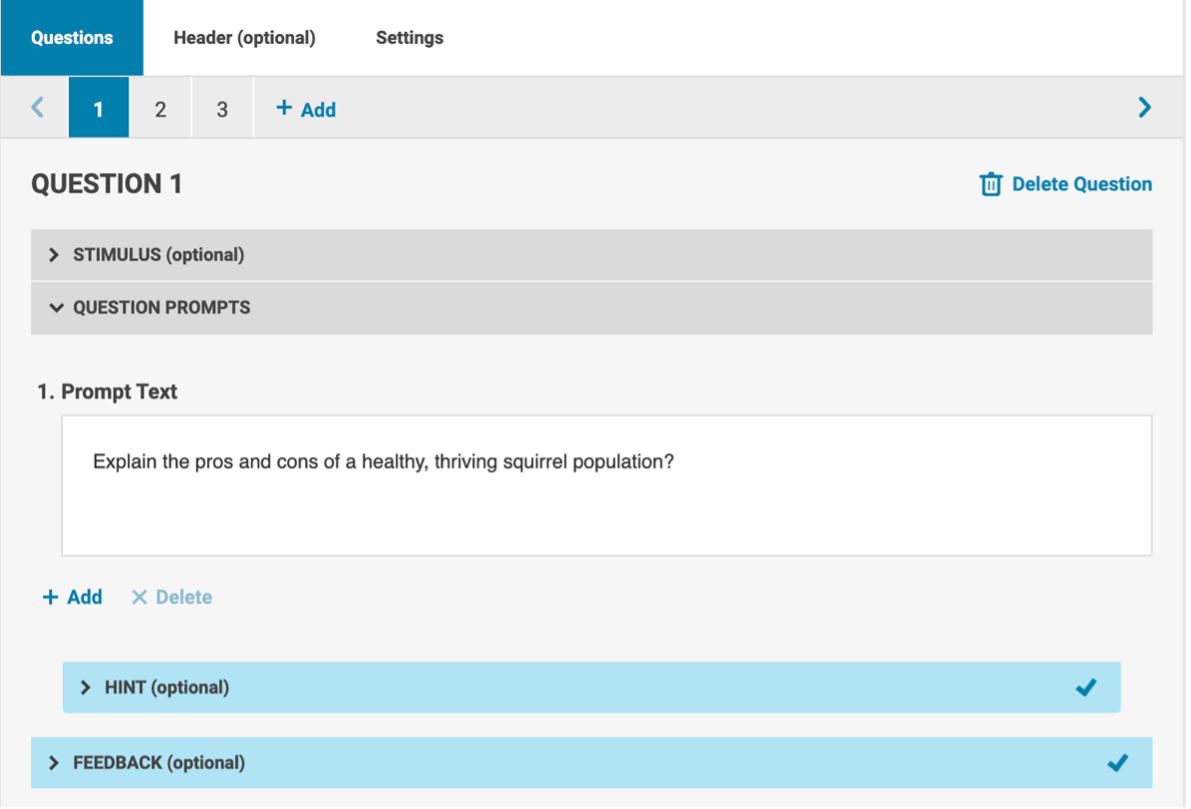

The Essay question is used to create short or long answer questions that expect students to enter text to create an answer. Student answers to these questions need to be scored manually. Instructors can ask students to print their answers or save them as a PDF for instructor review.

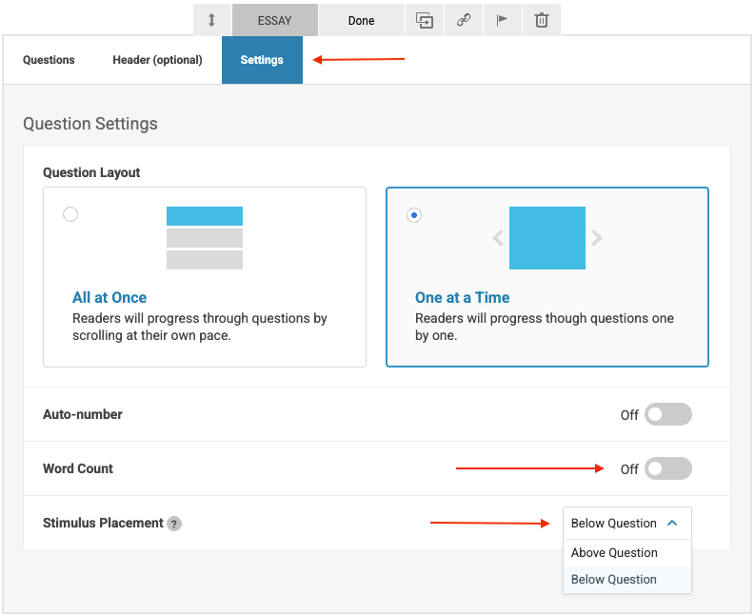

Use the Essay Settings to turn a visible ‘Word Count’ On/Off or adjust the stimulus placement ’Below Question’ or ‘Above Question’.


A Hint text can be added for each question in the Hint (optional) section.

Feedback (image/audio/text and/or video) can be added in the Feedback (optional) section.



Audio

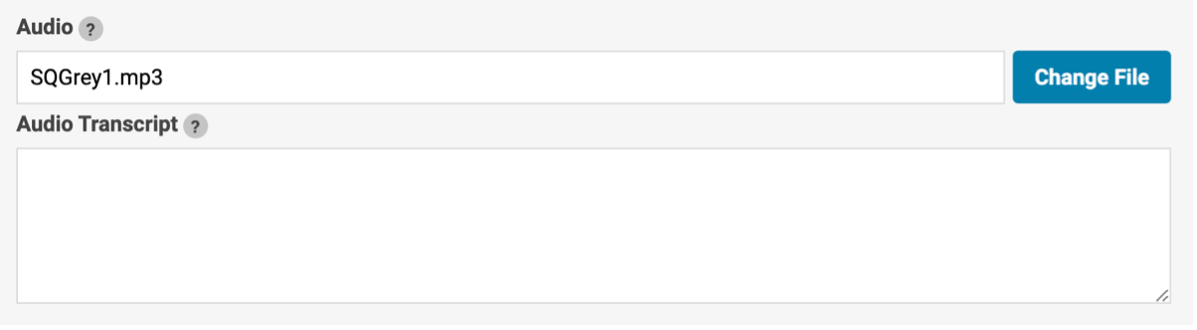

The Audio Block is used to add an audio player. Audio files should be .mp3 files. You can link to externally hosted audio or upload a file.

An audio transcript can also be added.



Video

The Video Block is used to add a video player.

Videos from sites such as Vimeo, YouTube or Brightcove can be embedded onto your page by pasting the embed code from the site into the video block.

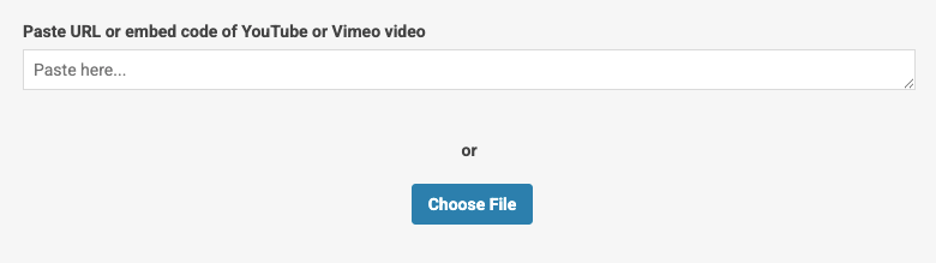

Paste URL.png

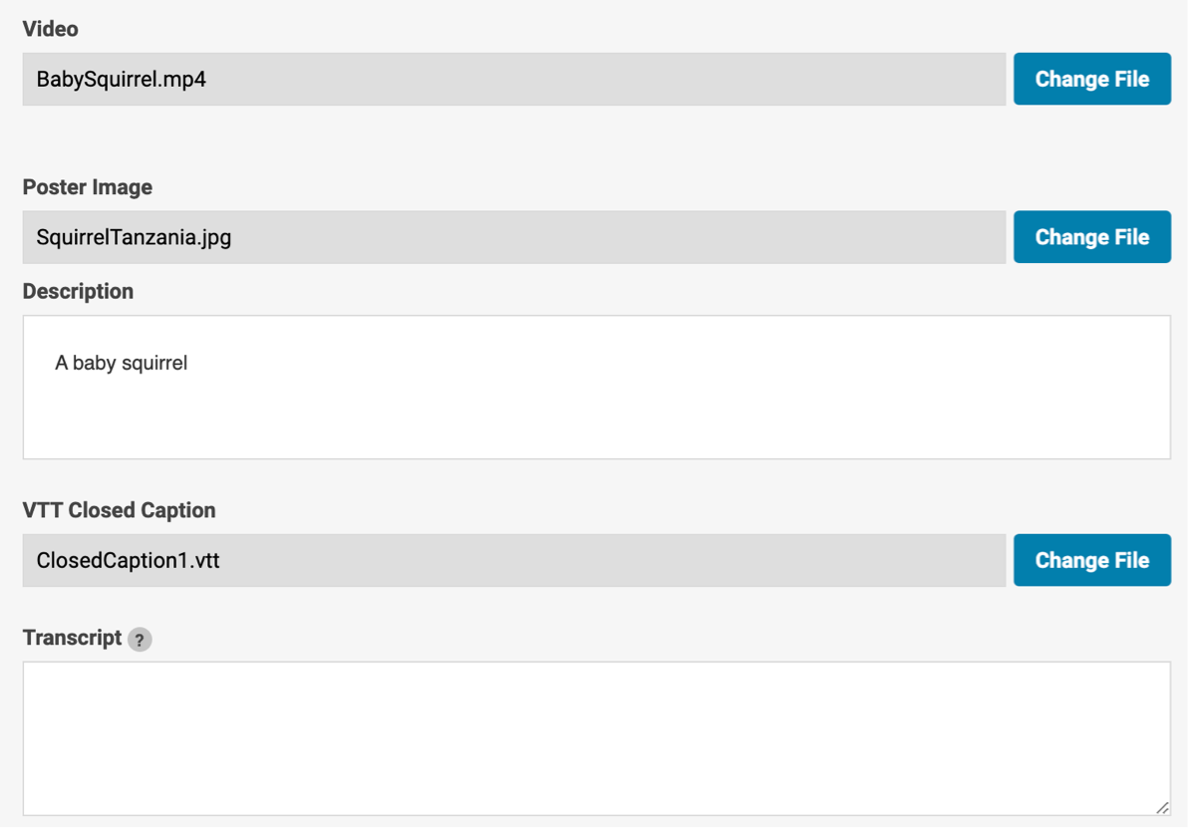

You can also upload a video into your EPUB by clicking the ‘Choose File’ button. The video files must be an .mp4 files. The associated closed caption file must be a .vtt file. Transcript text can be added in addition to the video’s .vtt caption file.

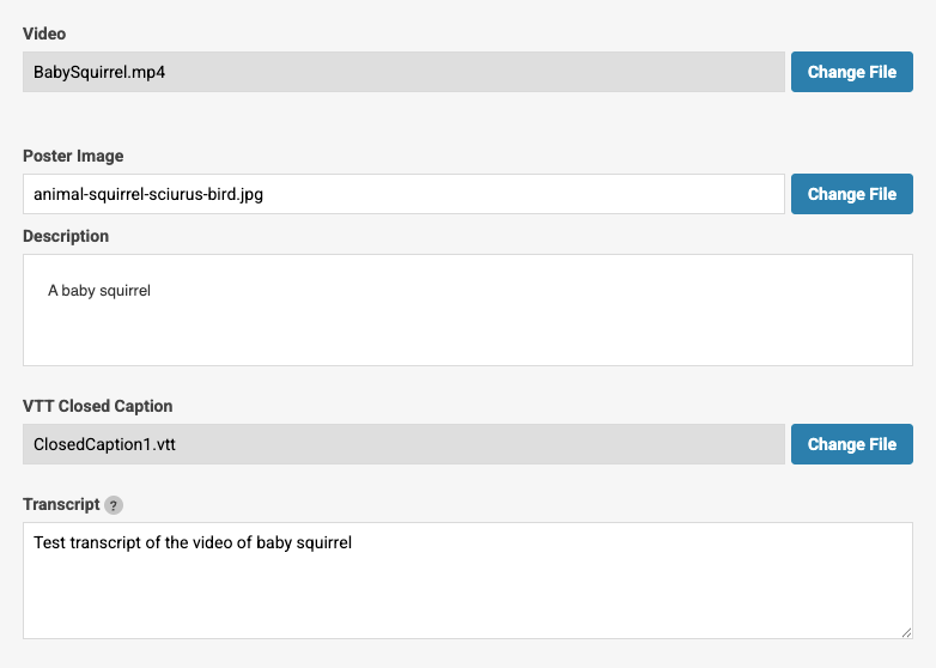

Video Sample.png

To comply with accessibility standards, it’s important to include a caption file or transcript text for your video.

A poster image can be added, allowing a static image to display in the video window. This is good to use if the first screen of your video is a black screen.

⚠️ Be advised that the more .mp4 files you embed into your EPUB the more it will increase the size of the EPUB file.



Slideshow


For multiple images that are related, create an image carousel using the Sideshow block.

A title and caption can be added for each image.

You can also tag if the image should have a border, can be zoomed, or be searchable.

A Image Alt Text can be added in the Accessibility Features section.



Button Link

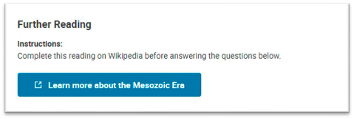

When you want to add more emphasis or prominence to a link that goes to external web resources, use the Button Link Block to configure a button with a label and instructional text:

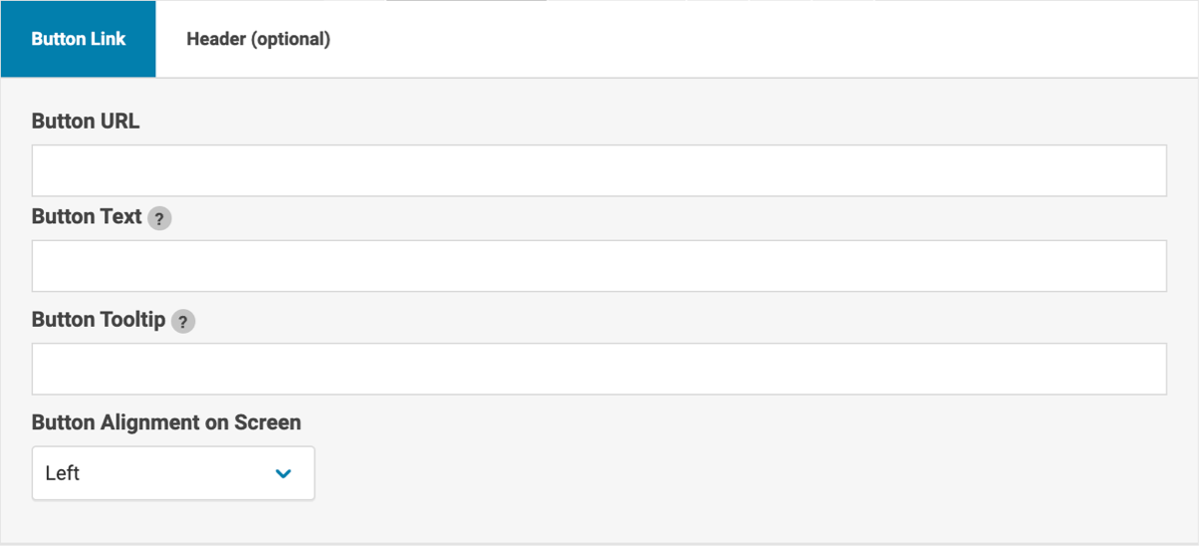

You can add the button URL, button text, and a button tooltip. You can also set the button alignment.



Hide/Show

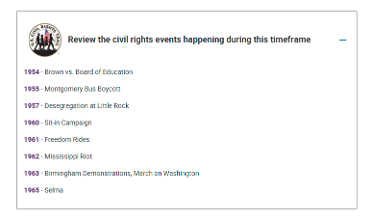

Use the Hide/Show Block to place additional information in a hidden panel that students can click or tap to reveal:

HIDDEN

REVEALED

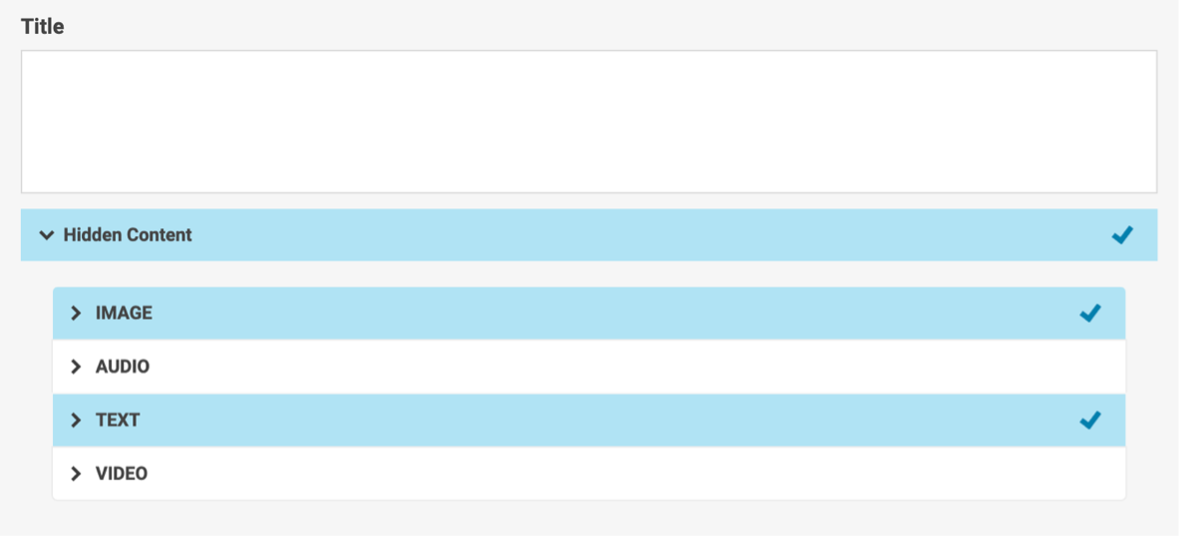

You can add a title and inline text that will display your shown content.

The hidden content can be an image, audio, text, and/or video.



Image Hotspot


For complex diagrams, charts, maps, or screenshots, use the Image Hotspot block to add pins with pop-up explanations
For example:

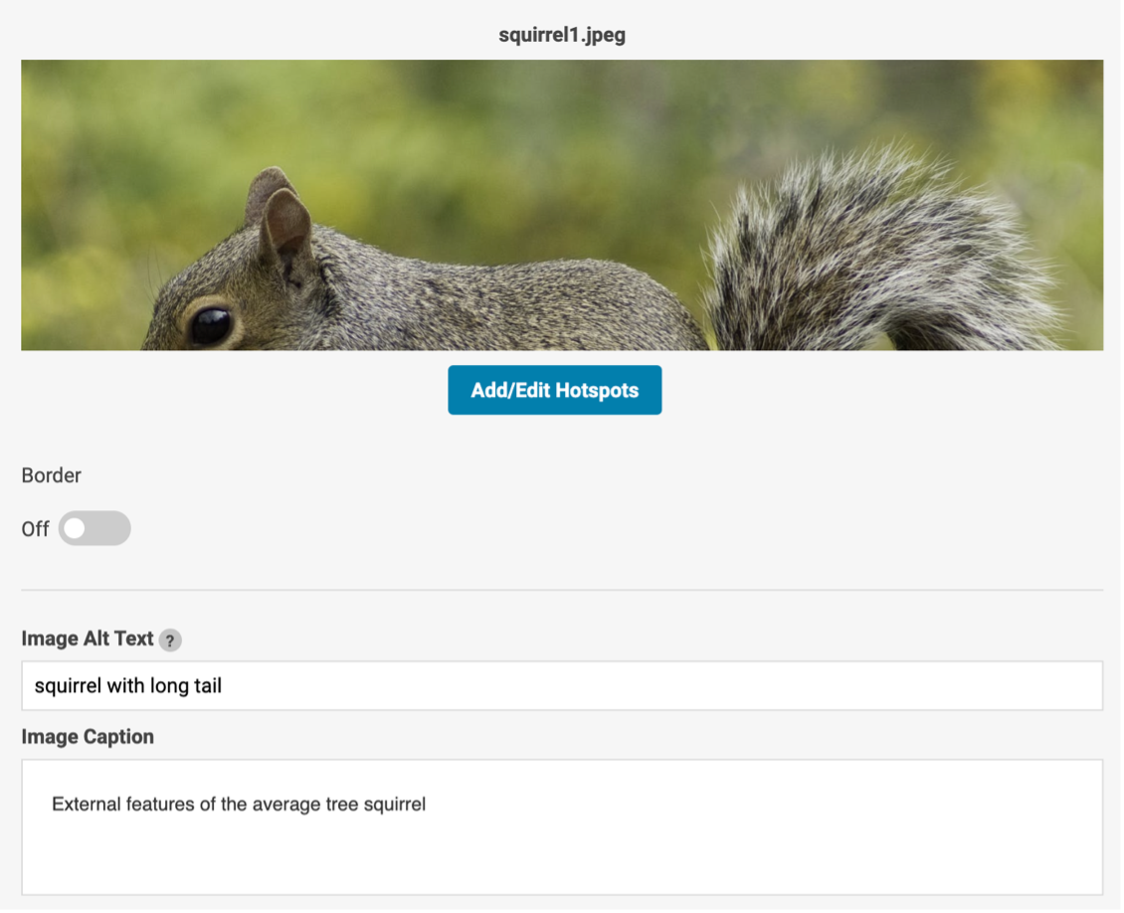

Click the Add/Edit Hotspots button to add your image and to add the hotspots to the image. Multiple hotspots can be added anywhere on an image.

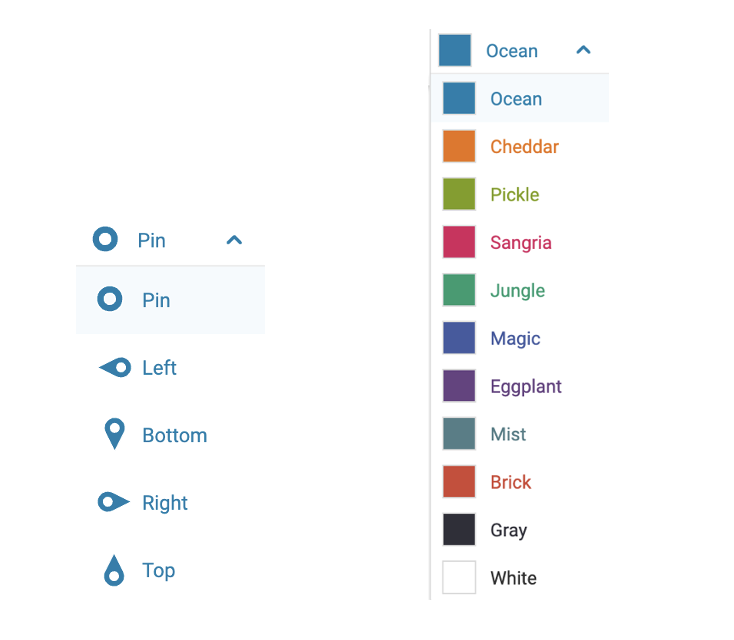

There are a variety of pin types and colors that can be set for a pin.

Image caption text can be added for each image and an image alt text can be add for accessibility.
